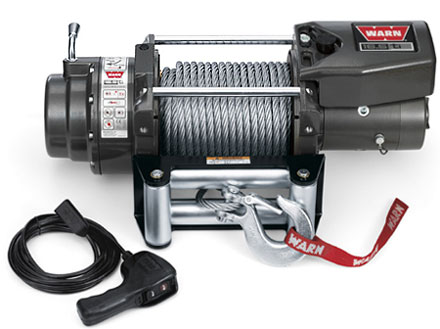

WARN 16.5ti Thermometric 16500lb WInch WARN 16.5ti Thermometric 16500lb WInch $3,185.49
Next product

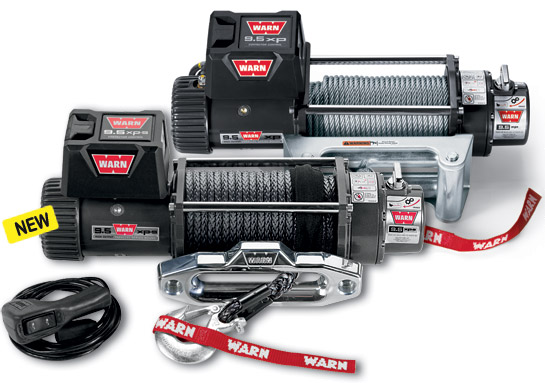

WARN 9.5xp WARN 9.5xp $2,083.19 – $2,395.19
WARN M12000
Click to enlarge

WARN M12000

$2,537.49

Weight 136.0 lbs
Add to wishlist
Compare
SKU: 17801 Categories: ,
Description

Description

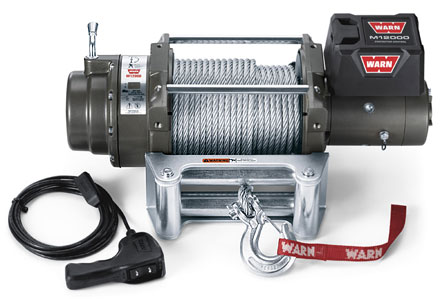

WARN M12000
A reliable workhorse to meet heavy winching needs
Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it.
  • 12,000 lb. (5,440 kg) pulling capacity (single line)
  • Large frame winch design is designed to handle heavier winch loads
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Brake provides superior control while winching
  • Remote-mount control box allows for various mounting options
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12′ (3.7m) lead
  • Chip-resistant powder-coated finish
  • 125′ of 3/8″ (38m of 9.5mm) diameter wire rope

M12000 Specs:


Rated line pull: 12000 lbs., (5440 kgs.) single-line
Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12 in (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 261:1
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)
Weight: 136 lbs. (62kgs.)
Wire rope: 125 ft , 3/8 in diameter (38m, 9.5mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Argent Gray Powder Coat

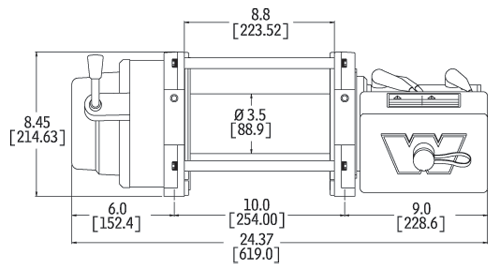

Winch Dimensions: 24.37 in L. x 8.45 in D. x 11 in H. (619mm L. x 214.63mm D. x 279mm H.)
Mounting Bolt Pattern: 10.0 in x 4.5 in (254mm x 114.3mm)
