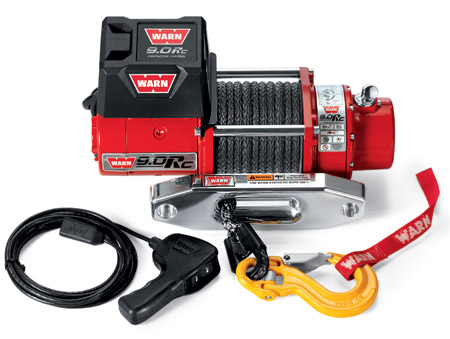

WARN 9.0Rc
A compact, lightweight winch for rock crawlers
Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. That’s why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary WARN performance.
  • 4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
  • Next-generation control pack delivers long duty cycles
  • New-style remote control

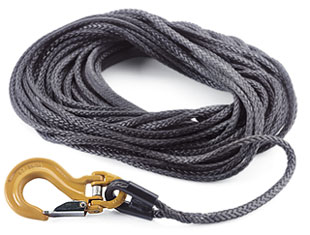

  • 50′ of 3/8″ (15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
  • Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
  • Aluminum hawse fairlead
  • Exclusive multi-segment cam actuated brake for positive operator control during winching
  • Gloss red paint with primer undercoat gives superior corrosion resistance

WARN 9.0Rc Specs:

Rated line pull: 9,000 lbs., (4080 kgs.) single-line
Motor: Series Wound, 12V 4.8 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12 ft (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 216:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 2.75 in/4.75 in (7.0cm/12cm)
Weight: 54 lbs. (24.8kgs.)
Rope: 50 ft, 3/8 in (15m, 9.5mm) Synthetic Rope
Fairlead: Polished Aluminum Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Gloss red paint over primer undercoating
